5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Produktnavn: Street Light body
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Vandtæt indeks: IP66 IP67
Jordskælvssikker indeks: IK08 IK09
Arbejdstemperatur (℃): -20-60
Overfladefarve: mørkegrå, lysegrå, sort, tilpasset osv
Contain Accessories : Complete finished street lights
produktegenskaber
- Aluminiumslegemet er lavet af ADC12 aluminium trykstøbning, overfladen behandlet med spraymaling for at forhindre korrosion og farvevedvarende.
- Stort område køleplade design til hurtig teori til fordel for konvektion mellem kold og varm luft, for at bevare den gode varmeafledning af lamper og øge lyset hele levetiden.
- Strømforsyningsboks til at holde lampen komplet og samlet.
- Ventilationsdesign for at forhindre støv og forhindre stillestående vand for at opnå den lette lang levetid.

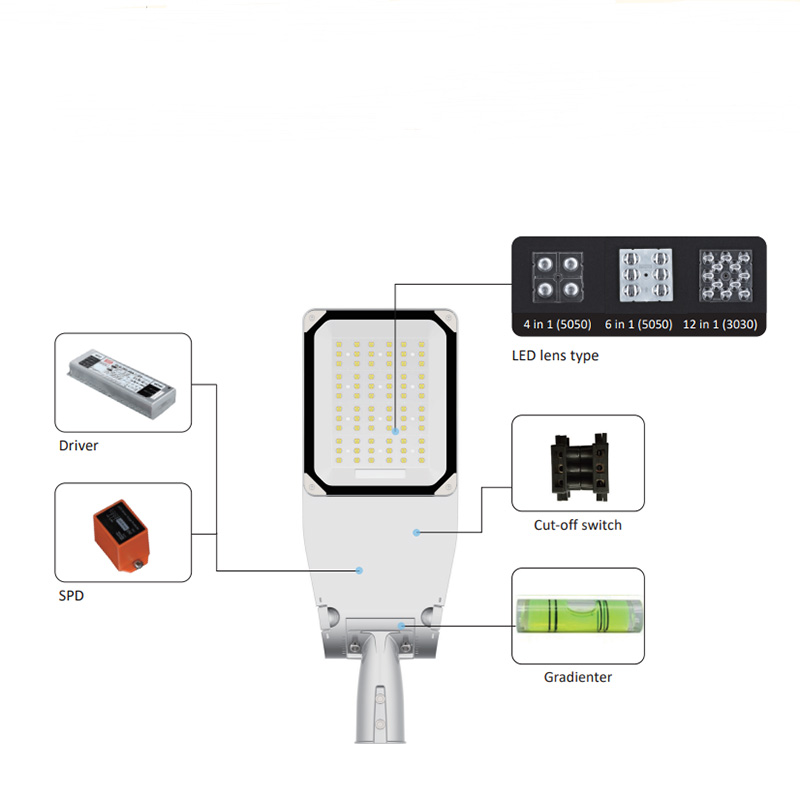

Product Details

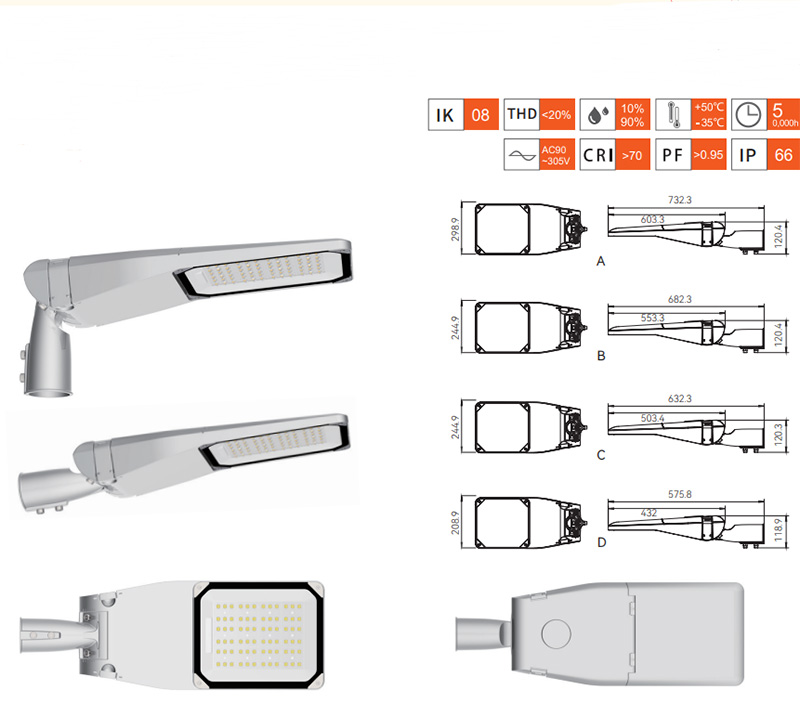

Product Size Chart
Specifikation og dimension
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klasse | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materiale | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co.,Ltd. er producenten af Aluminium Die-Casting LED Light Housing Med de forskellige af vores egen udviklede design og teknologier.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
