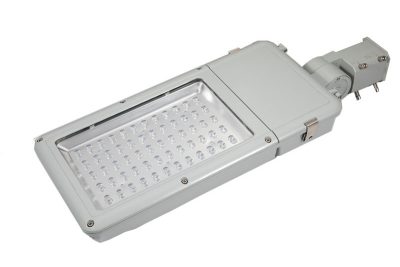

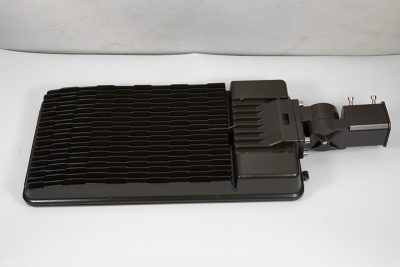

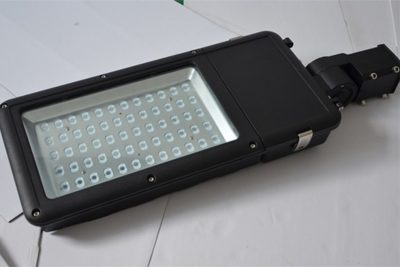

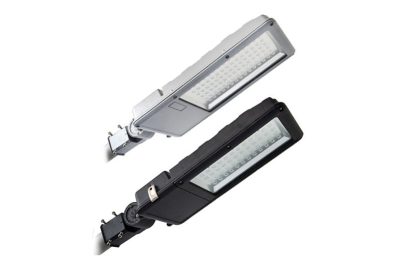

Die casting Aluminum Material Integrated LED Lighting ,high lumen brightness led light parts with PCB, Lens choose
Model No： EK-LD03
Match Power： 60W/180W
Contain Accessories： Aluminum Housing,Toughened Glass, Assembly Screws,Lamp Post pole,
Item : IP65 LED Street Lighting Housing
Power : 60W / 180W
Input Voltage : AC220 - 240V, 50/60 HZ
Vælg farve: Mørkegrå, Lysegrå, Sort, Tilpasset osv
Lifespan : ≥50000 Hours
produktegenskaber
- Die casting Aluminum material body with high quality surface treatment powder painting black color ,gray color or customized as clients Requirements
- COB Design with different power from 40w--140w , high performance on Lighting efficiency, Match your project Main Road and small city street side,
- High waterproof protect IP65 IP66, suit to projects and install near sea city or road lighting, IK08/IK09 shock proof grade ,great quality surface powder dusting to guarantee long lifetime of the lighting use,
- Good dissipation line design to help the working lighting Efficient heat dissipation Cooling, During the same size empty housing do bigger power lighting to Saving your cost and Maintenance fee.
Hele serien og specifikationer
| Modelkode | Husstørrelse (Mm) | Match Power | Lygtepæl (Mm) | Vægt (Kg) | tilbehør |
| EK-GLH02 Type A | Φ460*453 | 50W-80W | 76 | 5.7 | Heatsink body,armoured glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-GLH02 Type B | Φ460*515 | 50W-80W | 76 | 5.4 | |
| EK-GLH02 Type B | Φ460*194 | 50W-80W | 60 | 4.8 | |
| Legend: Std = IP65 IK08 Testing certificates | |||||
| Husmateriale: Trykstøbt aluminium + pansret glas | |||||
| Arbejdstemperatur -35℃~50℃ 20%~90% HR | |||||
LED Havelys udendørs 60w 80w
EK-LD03
IP65/IP66 , IK09/IK10,
Materiale: ADC12 Aluminium
Farve på hus: grå, sort,
