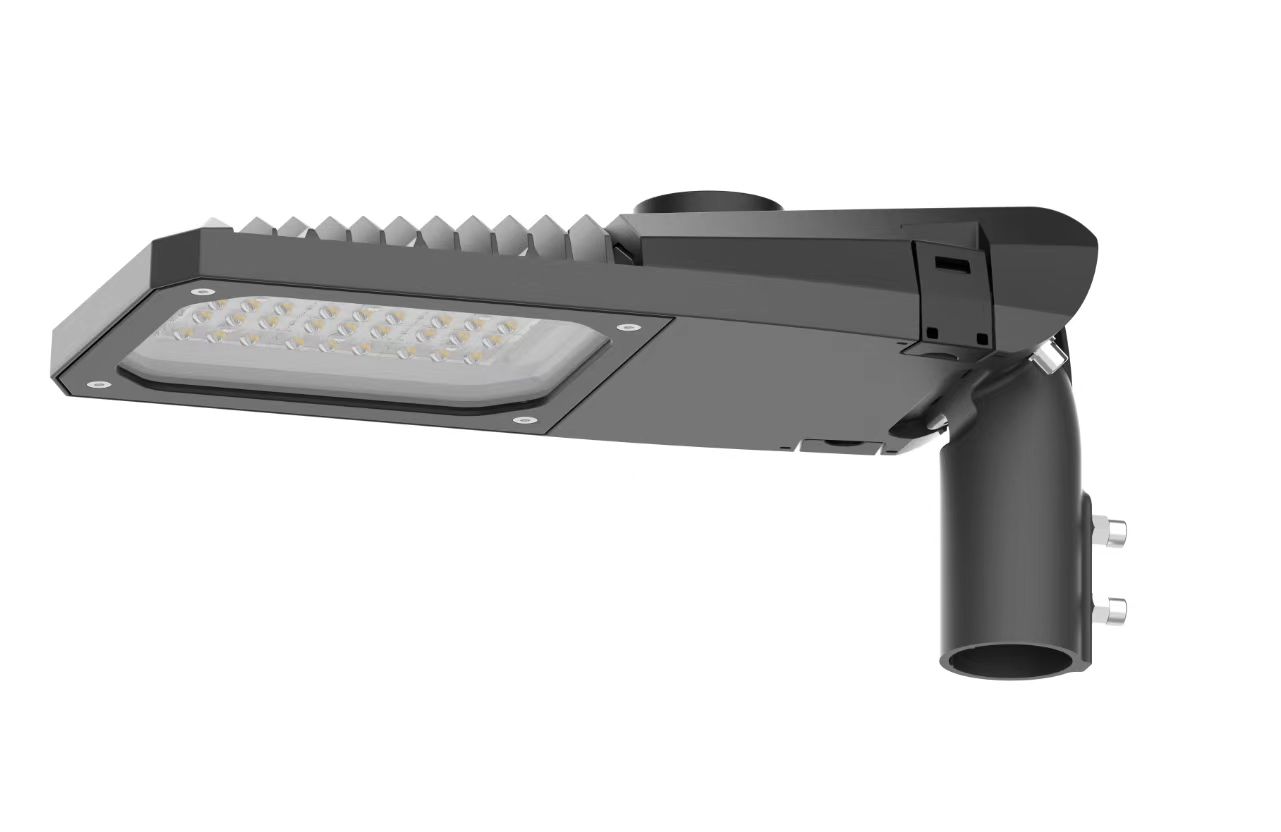

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
Modelkode | Housing Size mm | Match Power | Lamp Post (mm) | Vægt (Kg) | tilbehør |
EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring,304 s/s screws, |
EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
Legend: Std = IP66 IK08 | |||||
Housing Material :Die-cast Aluminum + Armored Glass | |||||
Arbejdstemperatur -35℃~50℃ 20%~90% HR |
produktegenskaber
- Aluminiumslegemet er lavet af ADC12 aluminium trykstøbning, overfladen behandlet med sprøjtemaling for at forhindre korrosion og farvepersistens.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Strømforsyningsboks til at holde lampen komplet og samlet.
- Ventilationsdesign for at forhindre støv og forhindre stillestående vand for at opnå den lette lang levetid.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
Shenzhen EKI Lighting Industrial Co.,Ltd. er producenten af Aluminium Die-Casting LED Light Housing Med de forskellige af vores egen udviklede design og teknologier.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
Funktioner af LED-gadelyshus:
- Meget holdbarhed
- Høj styrke
- Seneste tilgængelige designs
